GT-FWI
GT-TEST
9024800000

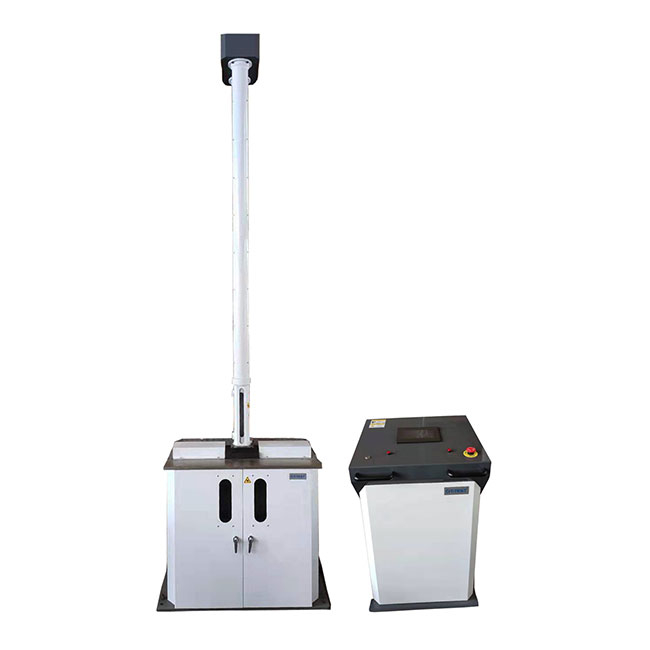

Drop Mass Impact Test Unit
Standards
· ISO3127
· BS EN744
· BS EN1411
· ISO11173
Application
The resistance of thermoplastic pipes with circular cross sections to external blows is determined by this test.
Falling strikers of specified mass and shape are dropped on specified positions around the circumference of test pieces, and they are subject to blows from these strikers. The true impact rate of the batch, or production run from an extruder, is estimated.
The maximum value acceptable for the TIR is taken to be 10%.
There are two test methods--round-the-clock method and staircase method.
Features
· The function of anti-rebound device has the catching rate of 100%.
· The import AC servo system will guarantee the high locating precision and fast rising speed.
· It is possible to set the impact height between 50mm and 2000mm, and it can also be calibrated automatically.
· Personal safety safeguards such as specimen doors, anti-shock windows, securing striker windows, etc., are considered. Testing can only be done properly if the test chamber and window are shut.
specifications
1. Impact height: 50mm to 2000mm
2. Height error: within±2mm
3. Overall dimensions: L1100mm×W600mm×H3800 mm
4. Energy losses: ＜0.25%
5. Masses of strikers: 0.25 to 16kg, permissible tolerance: ±0.5%
6. Rising speed: 12m/min
7. Anti-rebound catching rate: 100%
8. Test specimen: Ф10mm to Ф630mm
OUR SERVICE
We have 20-year expericen design team
We have professional QC team to ensure product quality
We have skilled staff to provide you perfect finished products
We provide you ontime aftersale service
Drop Mass Impact Test Unit
Standards
· ISO3127
· BS EN744
· BS EN1411
· ISO11173
Application
The resistance of thermoplastic pipes with circular cross sections to external blows is determined by this test.
Falling strikers of specified mass and shape are dropped on specified positions around the circumference of test pieces, and they are subject to blows from these strikers. The true impact rate of the batch, or production run from an extruder, is estimated.
The maximum value acceptable for the TIR is taken to be 10%.
There are two test methods--round-the-clock method and staircase method.
Features
· The function of anti-rebound device has the catching rate of 100%.
· The import AC servo system will guarantee the high locating precision and fast rising speed.
· It is possible to set the impact height between 50mm and 2000mm, and it can also be calibrated automatically.
· Personal safety safeguards such as specimen doors, anti-shock windows, securing striker windows, etc., are considered. Testing can only be done properly if the test chamber and window are shut.
specifications
1. Impact height: 50mm to 2000mm
2. Height error: within±2mm
3. Overall dimensions: L1100mm×W600mm×H3800 mm
4. Energy losses: ＜0.25%
5. Masses of strikers: 0.25 to 16kg, permissible tolerance: ±0.5%
6. Rising speed: 12m/min
7. Anti-rebound catching rate: 100%
8. Test specimen: Ф10mm to Ф630mm
